Bootable Containers:

Build Your Own Immutable Distro

Michael Fox
SouthEast LinuxFest 2025
https://github.com/spmfox/presentations
https://presentations.foxwd.com
v1.2

What are bootable containers?

Bootable containers are basically container images that also include the kernel.

They can be built, run, pushed, and pulled just like regular containers, with the added benefit of being deployable directly to a host.

Once deployed, there is no container runtime. This lets you build full system images using container tools.

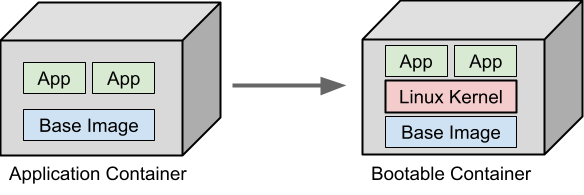

bootable-containers

https://docs.fedoraproject.org/en-US/bootc/getting-started/

What are bootable containers?

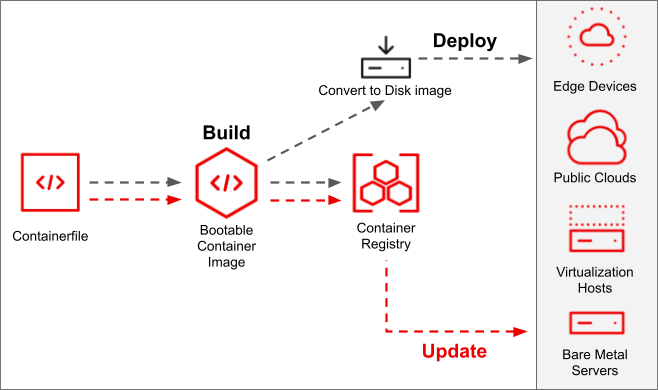

lifecycle of bootable containers

https://docs.fedoraproject.org/en-US/bootc/getting-started/

How does it work?

When a bootable container is run, it behaves like a regular container. Once deployed to a host, it stops being a container and becomes an immutable system.

An immutable system keeps user data separate from system data. This allows the system to be updated or rolled back as a whole, while your data remains unchanged.

bootc is the tool that enables all of this. After deployment, it uses rpm-ostree to manage the system's immutability.

https://bootc-dev.github.io/bootc/man/bootc.html
https://coreos.github.io/rpm-ostree/

What is bootc?

bootc

Transactional, in-place operating system updates using OCI/Docker container images. bootc is the key component in a broader mission of bootable containers.

The original Docker container model of using "layers" to model applications has been extremely successful. This project aims to apply the same technique for bootable host systems - using standard OCI/Docker containers as a transport and delivery format for base operating system updates.

https://bootc-dev.github.io/bootc/

FAQ

  • Is my system a container now?

    • No. After the image is deployed on a machine, there is no container runtime involved.

  • Can the image be run as a normal container?

    • Yes. But when run this way, it uses the host's kernel (like any regular container) and ignores the kernel inside the image.
https://bootc-dev.github.io/bootc/building/bootc-runtime.html

Filesystem Layout

During the container build, all files are writable, just like a normal container. After deployment, only the /etc and /var directories remain writable.

The /var directory is writable and persistent. Its contents do not change with system updates.

https://bootc-dev.github.io/bootc/filesystem.html

Filesystem Layout

Once a file is changed or added in /etc, it stays persistent indefinitely. Each update or rollback runs a three-way merge to combine changes from the current environment, the default environment, and the new deployment.

This merge can sometimes cause drift. For example, the original image might expect a user defined in /etc/passwd, but the running system no longer has it.

https://ostreedev.github.io/ostree/atomic-upgrades/#assembling-a-new-deployment-directory
https://lwn.net/Articles/1018082/

What are the deployment methods?

  • bootc-install
    • bootc-install-to-disk: Install to the target block device
    • bootc-install-to-filesystem: Install to an externally created filesystem structure
    • bootc-install-to-existing-root: Install to the host root filesystem
  • External Installers
    • Anaconda
    • bootc-image-builder
https://docs.fedoraproject.org/en-US/bootc/provisioning-generic/
https://docs.fedoraproject.org/en-US/bootc/bare-metal/

What are the deployment methods?

bootc-install can deploy to a new disk or an existing filesystem. This allows you to take over an existing system by installing directly onto a running machine.

bootc-image-builder can be used to create disk images and ISO files.

https://bootc-dev.github.io/bootc/man/bootc-install.html
https://github.com/osbuild/bootc-image-builder

Building a bootc Container

bootc containers can be built with Podman using regular Containerfiles:

FROM quay.io/fedora/fedora-bootc:41
RUN dnf -y install cowsay lolcat

This is a very simple example which will use Fedora 41 as a base, and install the cowsay and lolcat packages.

sudo podman build -t localhost/bootc-test -f bootc-test.containerfile
We will be building as root because bootc needs root access to deploy the container to the local host.

Building a bootc Container

building bootc container

Running a bootc Container

Let's see how a bootc container acts like a regular container.

We will try to use cowsay on the host, where it's not installed, then we can try in the container with podman run.

sudo podman run --rm -it localhost/bootc-test sh -c 'cowsay -f tux bootc-test |lolcat

Running a bootc Container

running bootc container

Deploying a bootc Image On Top of an Existing System

A quick way to deploy a bootc image is on top of a running system.

podman run --rm --privileged \
    --pid=host --security-opt label=type:unconfined_t \
    --volume /dev:/dev \
    --volume /var/lib/containers:/var/lib/containers \
    --volume /:/target \
    --entrypoint bootc \
    localhost/bootc-test:latest \
    install to-filesystem --skip-fetch-check --replace=alongside /target \
    --root-ssh-authorized-keys /target/root/.ssh/authorized_keys \
    --target-transport=containers-storage --acknowledge-destructive

Note that bootc is being used from inside the container that was built. This means that the container we built already has everything needed to deploy bootc.

Deploying a bootc Image On Top of an Existing System

deploying bootc image

Deploying a bootc Image On Top of an Existing System

Once the installation is complete, simply reboot the host. When it comes back up, it will be running as a bootc immutable system.

Now that the system has rebooted, let's check if cowsay works. It should, since we installed it in the image during the build process.

Deploying a bootc Image On Top of an Existing System

deploying bootc image

Updating a bootc System

Updating is as simple as pulling a new image or building your own. Let's update our test environment to Fedora 42.

FROM quay.io/fedora/fedora-bootc:42
RUN dnf -y install cowsay lolcat

sudo podman build -t localhost/bootc-test -f bootc-test.containerfile
sudo bootc update

Updating a bootc System

updating bootc system

Updating a bootc System

Total time needed to update our system from F41 -> F42 was 2 minutes 9 seconds. Once rebooted, this system will be on Fedora 42.

Temporarily Adding Packages

You can temporarily make /usr writable and use dnf to install packages. These changes won't persist after a reboot, but they're useful for testing or making quick, temporary modifications.

bootc usr-overlay

Temporarily Adding Packages

overlay

Rolling Back a bootc System

Rollbacks can be performed in two ways:

  • From the GRUB menu during boot
  • Directly from the running system

bootc rollback

Rolling Back a bootc System

rolling back bootc system

Rolling Back a bootc System

Total time needed for a rollback to Fedora 41 was about 2 seconds plus a reboot.

Why use bootc over other immutable systems?

  • Simplify build process

    • Reuse what you already know about building containers
    • Take advantage of existing container build tools

  • Unify processes

    • Build bare metal, VM, and container images using the same method and pipeline
    • Scan OS images using container security tools

What does this look like in production?

Your Containerfiles can be as large or complex as needed. The following example is a Containerfile deployed with Ansible.

It does several things, including:

  • Starts from a Fedora base image
  • Installs tools like smartmontools, hdparm, and wireguard-tools
  • Configures firewalld
  • Installs ZFS, including the Cockpit plugin and Sanoid/Syncoid
  • Sets up KVM
  • Installs NFS and Samba
https://github.com/spmfox/BootcBlade/blob/main/templates/bootcblade.containerfile.j2

What does this look like in production?

bootcblade-code

What does this look like in production?

Updates are handled via a systemd service:

[Unit]
After=network-online.target
Wants=network-online.target
Description=BootcBlade rebuild service

[Service]
Type=oneshot
TimeoutStartSec=30m
ExecStart=/usr/bin/bash -c "podman build -t localhost/bootcblade \
  -f /root/bootcblade.containerfile --pull=always"
ExecStartPost=/usr/bin/bash -c "bootc switch --transport containers-storage \
  localhost/bootcblade:latest && bootc update"
ExecStartPost=-sleep 10 ; podman image prune -f
https://github.com/spmfox/BootcBlade/blob/main/templates/bootcblade-rebuild.service.j2

What does this look like in production?

And scheduled via a systemd timer:

[Unit]
Description=bootcblade-rebuild timer

[Timer]
OnCalendar=weekly
Persistent=true

[Install]
WantedBy=timers.target
https://github.com/spmfox/BootcBlade/blob/main/templates/bootcblade-rebuild.timer.j2

What does this look like in production?

With bootc, installing ZFS kernel modules via DKMS is now risk-free. There's no chance of a broken system due to failed module builds.

If the build succeeds, it's staged for the next reboot. If it fails, nothing changes and the current system keeps running safely.

How can this be automated?

BootcBlade - https://github.com/spmfox/BootcBlade

Ansible automation for deploying a KVM hypervisor using bootc on Fedora Server.

  • Use Jinja templating for the Containerfile, bootc install command, and custom systemd services for updating
  • Handle host configuration, like adding SSH keys before deployment
  • Automate post-deploy tasks, such as creating users and setting up systemd jobs

How can this be automated?

bootcblade-deploy

bootc

Presentation

https://github.com/spmfox/BootcBlade

Thank you

Bootable Containers:

Build Your Own Immutable Distro

Michael Fox
https://github.com/spmfox/presentations
https://presentations.foxwd.com
